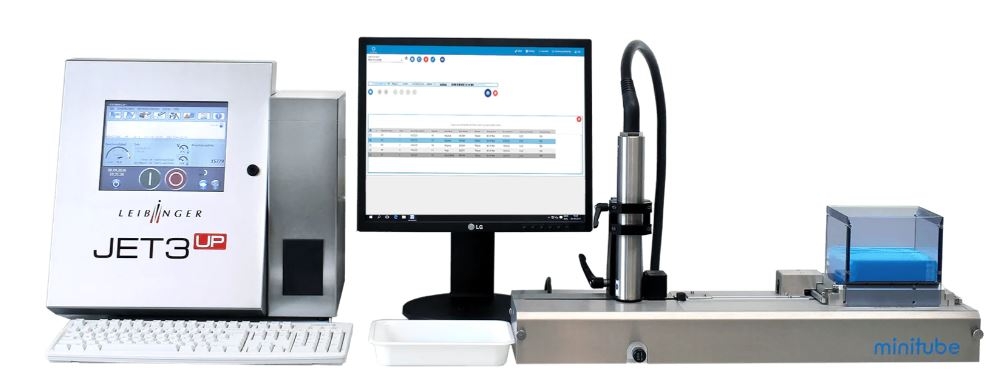

CombiSystem MPP Quattro and MiniJet Printer JET 3up

Code: GTI-0031

Description

Product features

• Exchangeable hopper, capacity: 2400 MiniStraws (0.25 ml) or 1200 medium straws (0.5 ml)
• Exchangeable compact ultrasonic sealing unit
• External ultrasonic generator that can be placed up to 2.5 m away (ON/OFF switch on the machine)
• Integrated vacuum sensors for optimal filling from the first 4 straws
• Vacuum unit with integrated tank: level controlled by PLC, set value can be easily modified on the touch screen
• Memory function for up to 8 sets of filling and sealing parameters for different straws or extenders
• PLC microprocessor control
• Instant abrasion resistant print
• Easily adjustable printhead position
• No gear pump to create pressure in the ink circuit, so no wear particles to age the ink
• Continuous, once-a-day ink viscosity adjustment for optimal startup conditions
• Straw transport unit with light sensor control
• Semen level control and automatic stop of straw supply at the end of the ejaculate
• Minitube PrintControl software with clear and easy to use menu navigation
• Data input from customer databases for easy creation of custom databases
• Combines with Prism10 Bull lab management software
• Power supply: 110 V/60 Hz or 230 V/50-60 Hz

Your benefits

• Combines excellent filling, sealing and printing quality with high speed
• Full electronic control of all components
• Fast and easy conversion between 0.25 and 0.5 ml straws and vice versa (1-2 minutes)
• Filling of 1 to 4 straws at a time: freely selectable by the operator
• Optimal filling of the first 8 straws saves semen and increases the number of usable straws
• Semen saving: when the ejaculate is almost finished, the active filling needles are automatically reduced from 4 to 1 and the remaining semen from the inactive needles runs back into the reservoir - virtually no semen is wasted, and the ejaculate is used to the very last drop
• Quick, easy and reliable changeover between settings for different straws and extenders; no need to repeatedly change individual settings on e.g. ultrasonic generator or vacuum controller
• Quick preparation for a new ejaculate: filling head contains all four filling needles and can be changed quickly and easily
• Sealtronic print head technology eliminates clogging and frequent head cleaning: the ink is 100% protected from drying out
• No drying out of the ink in the print head: ready to print immediately, even after long periods of downtime
• Low operational cost: ink tank only needs to be refilled instead of completely replaced
• Requires no additional control unit, only a standard PC (included)
• Change of the transport belt without tools
• Innovative PrintControl print software with intuitive user interface and preview functionality for easy control of print results
• Seamless combination with Prism10 lab software (separate product) and PrintControl print software (integrated) for error-free data flow and complete traceability throughout the straw production process
• Diagnostic program for connected devices, remote maintenance possible
• 24-hour operational capacity
